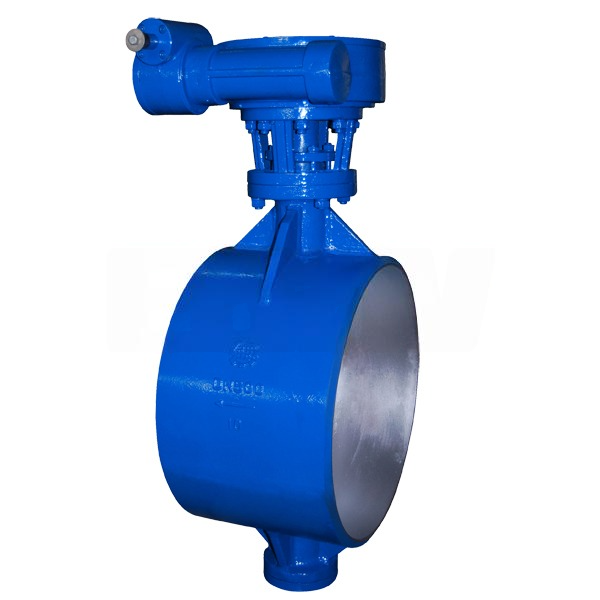

Butterfly Valve features bi-directional sealing with zero leakage and low torque. The metal-seated valve design makes it suitable for a wide range of harsh operating conditions. The eccentric design allows the sealing surfaces to disengage when the valve is opened, reducing seat friction and significantly extending the valve's service life. Additionally, it has inherent fire-safe properties, making it widely used in fluid shut-off and regulation in various pipelines. The triple eccentric butterfly valve follows the API 609 standard.

Size range: 2" ~ 160" (DN50 ~ DN4000)

Pressure rating: ASME CLASS 150 ~ 2500

Body materials: Carbon steel, stainless steel, alloy steel, duplex steel, copper

Connection types: WAFER, LUG, RF, BW

Operating methods: Gearbox, Electric, Pneumatic, Hydraulic
